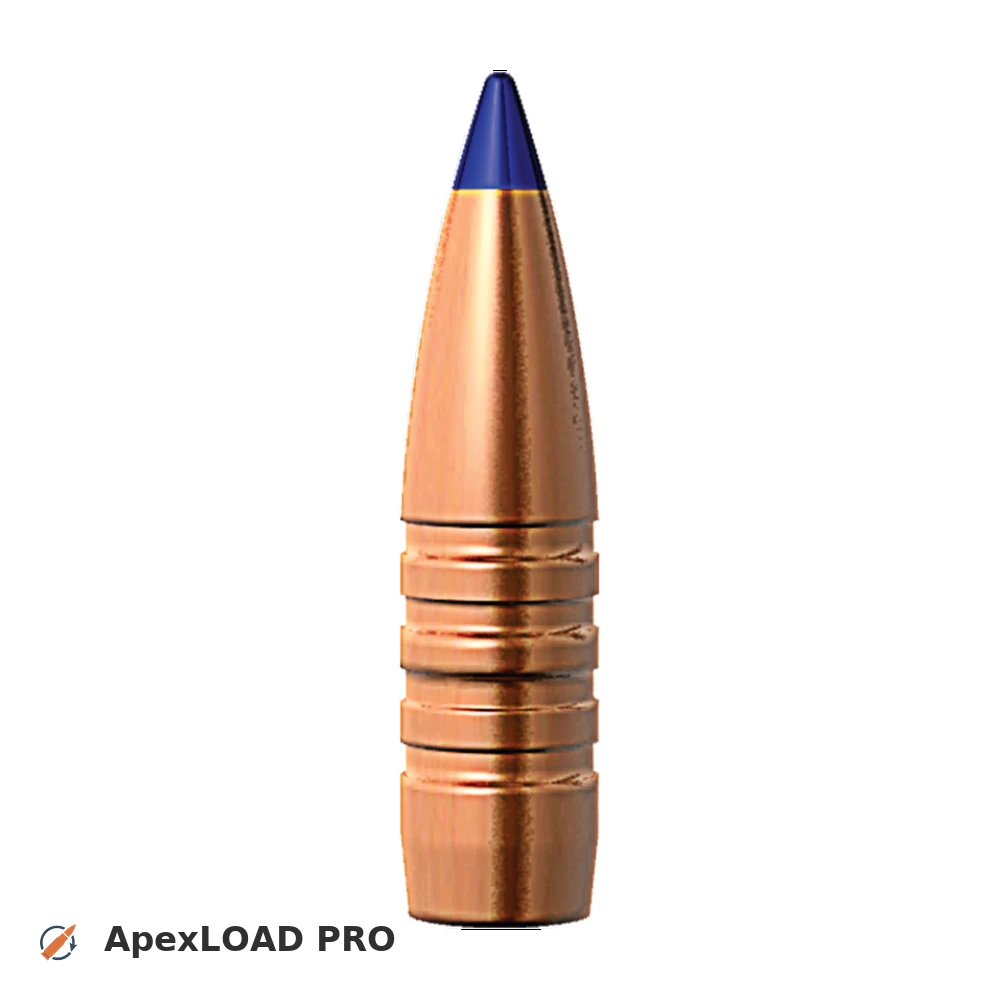

.284 | 140gr | Barnes TTSX BT
by Barnes · See details on brand website
The Barnes TTSX BT (Tipped Triple-Shock X Boat Tail) bullet is designed for handloaders and hunters seeking exceptional terminal performance. Constructed from solid copper, it features a polymer tip that enhances ballistics and initiates rapid expansion upon impact. This bullet is ideal for a range of applications, including big game hunting, where maximum weight retention and deep penetration are critical. It is suitable for calibers like .243, .270, and .308, making it versatile for various game such as deer, elk, and other large animals. Advantages of the TTSX BT include its ability to expand consistently across different velocities, reduced barrel fouling due to its all-copper construction, and high ballistic coefficients for improved accuracy. Overall, the Barnes TTSX BT is a top choice for hunters prioritizing both performance and ethical considerations.
Specifications
Weight
140 gr (9.07 g)
Diameter
0.284″ (7.21 mm)
Sectional Density
0.248
BC G1
0.412
Type
TTSX BT
Min. Twist
1:10.0
Related Load Recipes
Load recipes using .284 | 140gr | TTSX BT are available in the following cartridges:
7 mm Rem. SA Ultra Mag.
7 mm-08 Rem.
.280 Ackley Improved
7 mm WSM
7 x 64 Brenneke
7 mm Exp. Rem.
7 x 66 SE v. Hofe
7 mm Weath. Mag.
7 mm Rem. Mag.
.280 Rem.
7 x 57
7 mm Blaser Mag.
7 x 65 R Brenneke
.28 Nosler
7 mm STW
7-.300 Norma Mag.
7 x 75 R SE v. Hofe
7 x 57 R
7.21 Firebird
7 mm KM Katzmaier
7 mm Rem. Ultra Mag.
7 x 72 R
7 x 50 R
7 mm Mag. Fl. H&H
.284 Win.
7 mm SAW
7 mm PRC
7-6.5 PRCW
.280 Riml. N.E. Ross
7 mm Backcountry
7 x 61 S&H (Super)
7 FCP
Similar Bullets
Same-caliber projectiles within ±0.003", ±5gr and matching lead content from other brands.
.284 | 145gr | LRX BT
Barnes · 145gr · BC 0.449
.284 | 140gr | Expansion Tip
Nosler · 140gr · BC 0.489
.284 | 143gr | Hunter
Hammer · 143gr
.284 | 139gr | HDB Universal
Reichenberg · 139gr · BC 0.257
.284 | 140gr | Blade
SAKO · 140gr · BC 0.365
.284 | 139gr | LRX BT
Barnes · 139gr · BC 0.434
.284 | 140gr | TSX BT
Barnes · 140gr · BC 0.394
.284 | 140gr | AERO SB,- smax:17.20
Styria Arms | AERO · 140gr · BC 0.4519
.284 | 140gr | Powerhead Blade Pro
SAKO · 140gr · BC 0.442
.284 | 135gr | HP
Atomic 29 · 135gr · BC 0.39
.284 | 139gr | CX
Hornady · 139gr · BC 0.429
.284 | 145gr | Fox Classic Hunter
Fox Bullets · 145gr · BC 0.362
Community Load Data for .284 | 140gr | TTSX BT
Loads for .284 | 140gr | TTSX BT from our community:
46 loads
| cartridge | Powder | Barrel (in) | Charge (gr) | OAL (in) | Max. Pressure (psi) | Muzzle Velocity (fps) |
|---|---|---|---|---|---|---|
| 7 mm-08 Rem. | Hodgdon VARGET | 24.0 | 41.0 | 2.800 | 59474 (99%) | 2818 |
| 7 x 57 | Ramshot Ramshot Big Game | 23.6 | 46.7 | 3.025 | 50676 (90%) | 2799 |
| 7 x 57 | Winchester 760 | 23.6 | 49.5 | 3.071 | 51480 (91%) | 2841 |
| 7 x 65 R Brenneke | Vihtavuori N160 | 23.6 | ••.• | 3.291 | 6 (0%) | 2707 |
| 7 x 65 R Brenneke | Vihtavuori N160 | 23.6 | ••.• | 3.291 | 6 (0%) | 2602 |
| 7 x 64 Brenneke | Winchester 6.5 StaBall | 23.6 | ••.• | 3.315 | 7 (0%) | 2703 |
| 7 x 64 Brenneke | Winchester 6.5 StaBall | 23.6 | ••.• | 3.307 | 6 (0%) | 2680 |
| 7 x 64 Brenneke | Reload Swiss RS 60 | 23.6 | ••.• | 3.409 | 8 (0%) | 3015 |
| 7 x 57 R | Norma URP | 24.8 | ••.• | 3.047 | 41974 (85%) | 2690 |
| 7 mm-08 Rem. | Hodgdon Hodgdon VARGET | 24.0 | ••.• | 2.758 | 49617 (82%) | 2671 |
| 7 mm-08 Rem. | Hodgdon Hodgdon CFE223 | 24.0 | ••.• | 2.758 | 55056 (91%) | 2848 |
| 7 mm-08 Rem. | Hodgdon Hodgdon VARGET | 24.0 | ••.• | 2.758 | 54679 (91%) | 2746 |
| 7 x 57 R | Vihtavuori N550 | 24.8 | ••.• | 3.047 | 39088 (79%) | 2612 |
| 7 mm WSM | Accurate Powders MAGPRO | 18.0 | ••.• | 2.860 | 60553 (95%) | 2969 |
| 7 x 57 R | Vihtavuori N550 | 24.8 | ••.• | 3.071 | 43598 (88%) | 2703 |
| 7 x 57 R | Norma URP | 24.8 | ••.• | 3.047 | 39146 (79%) | 2635 |
| 7 x 64 Brenneke | Reload Swiss RS 60 | 23.6 | ••.• | 3.409 | 8 (0%) | 2976 |
| 7 x 64 Brenneke | Reload Swiss RS 60 | 22.0 | ••.• | 3.320 | 43976 (73%) | 2749 |
| 7 x 64 Brenneke | Winchester 6.5 StaBall | 23.6 | ••.• | 3.299 | 7 (0%) | 2710 |
| 7 x 64 Brenneke | Winchester 6.5 StaBall | 24.0 | ••.• | 3.299 | 7 (0%) | 2733 |
| 7 x 64 Brenneke | Winchester 6.5 StaBall | 24.0 | ••.• | 3.299 | 7 (0%) | 2753 |
| 7 x 64 Brenneke | Winchester 6.5 StaBall | 24.0 | ••.• | 3.268 | 8 (0%) | 2808 |
| 7 x 64 Brenneke | Winchester 6.5 StaBall | 24.0 | ••.• | 3.268 | 7 (0%) | 2759 |
| 7 x 64 Brenneke | Winchester 6.5 StaBall | 24.0 | ••.• | 3.268 | 7 (0%) | 2736 |
| 7 x 64 Brenneke | Winchester 6.5 StaBall | 24.0 | ••.• | 3.268 | 7 (0%) | 2687 |
