7 x 72 R Load Data & Reloading Guide

Rifle

Also known as: 7x72R, 7×72mm R, 7mm x 72mm R

About 7 x 72 R

The 7 x 72 R cartridge is a classic European hunting round with historical roots dating back to the early 20th century. Originally designed in Germany, this rimmed cartridge was specifically tailored for break-action rifles, commonly used in the traditional hunting environments of Central Europe. The 7 x 72 R finds its place among other rimmed cartridges popular within countries like Germany, Austria, and even extending to some parts of Scandinavia. Its design aligns with the needs of hunters who favored reliability in manually operated hunting rifles.

From a technical perspective, the 7 x 72 R features a rimmed, bottlenecked case with an overall length of approximately 82mm. The cartridge is equipped with a 7mm bullet, making it suitable for medium-sized game. Typical bullet weights range from 10 grams to 11.5 grams, roughly translating to bullet weights of 154 to 177 grains. Historically, bullet constructions have varied from soft point designs to more modern expanding types, allowing hunters versatility in adapting ammunition to specific game and hunting conditions.

Ballistically, the 7 x 72 R offers moderate velocities, generally around 650 meters per second when fired from standard rifle barrels. This means the cartridge is designed more for reliability and traditional hunting engagements rather than hyper-velocity performance. Its effective range comfortably spans out to 200 meters, a reflection of its intended use in wooded and shorter range European hunting environments.

For reloaders, the 7 x 72 R presents several advantages. Its rimmed design is forgiving and facilitates extraction in older single-shot and double-barreled rifles. Reloaders appreciate these historical calibers for their craftsmanship and the ability to tailor reloads precisely to their own rifles, many of which may have unique preferences due to age and variations in manufacturing. Quality brass can often be reconditioned with relative ease, and the use of moderate loads extends the lifespan of components.

In practice, hunters often choose the 7 x 72 R for traditional deer and boar hunting, where its controlled recoil and adequate stopping power are advantageous. Additionally, the nostalgia factor of using a caliber with such historical significance appeals to many enthusiasts. Overall, the 7 x 72 R remains a respected and viable cartridge in numerous European hunting circles, where the balance of tradition and performance continues to find favor among discerning hunters and reloaders alike.

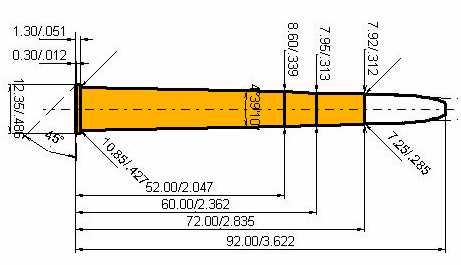

Technical Drawing

7 x 72 R technical drawing and load data

Technical Specifications

Maximum Pressure:40611 PSI / 2800 bar
Case Volume:54 Grains of Water
Primer Size:Large Rifle (LR)
Safety Standard:C.I.P.
Bore Area:40.41 mm²
Barrel Diameter:0.285" / 7.2 mm
L3:2.831" / 71.9 mm
L6:3.622" / 92.0 mm

Start Calculating to Develop your own Load Data for 7 x 72 R

Use our professional ballistics calculator to develop safe and accurate load recipes for 7 x 72 R.

Start Calculating

Standard Load Data — 7 x 72 R

Select your desired cartridge and bullet weight below to access the corresponding load table. From there, you can choose any listed load recipe and transfer it directly into the ballistics calculator for further refinement, optimization, and precision tuning.

All
118 gr
120 gr
127 gr
130 gr
132 gr
133 gr
135 gr
139 gr
140 gr
145 gr
160 gr
175 gr
180 gr
Swift logo

.284 | 140gr | Swift A-Frame

BC G1: 0.335
37 powders164 loads
Hornady logo

.284 | 139gr | Hornady CX

BC G1: 0.429
55 powders266 loads
Swift logo

.284 | 175gr | Swift A-Frame

BC G1: 0.493
38 powders173 loads
Barnes logo

.284 | 139gr | Barnes LRX BT

BC G1: 0.434BC G7: 0.215
54 powders241 loads
Hasler logo

.284 | 139gr | Hasler ARIETE

BC G1: 0.43
51 powders225 loads
Barnes logo

.284 | 145gr | Barnes LRX BT

BC G1: 0.449BC G7: 0.221
45 powders209 loads
Sierra logo

.284 | 180gr | Sierra MatchKing

BC G1: 0.66BC G7: 0.34
37 powders171 loads
Nosler logo

.284 | 160gr | Nosler AccuBond

BC G1: 0.531BC G7: 0.282
35 powders160 loads
RWS logo

.284 | 127gr | RWS Evolution Green

BC G1: 0.345
56 powders259 loads
Peregrine logo

.284 | 132gr | Peregrine VLR-4

BC G1: 0.47
54 powders254 loads
Cutting Edge logo

.284 | 133gr | CutEdge ESP Raptor

BC G1: 0.353
53 powders254 loads
Cutting Edge logo

.284 | 120gr | CutEdge ER Raptor

BC G1: 0.436
55 powders253 loads
Cutting Edge logo

.284 | 118gr | CutEdge ESP Raptor

BC G1: 0.332
52 powders252 loads
Virtus logo

.284 | 120gr | Osprey Virtus

BC G1: 0.36
53 powders244 loads
Styria Arms | AERO logo

.284 | 120gr | AERO SUB,- smax:16.90

BC G1: 0.1965
51 powders242 loads
Styria Arms | AERO logo

.284 | 140gr | AERO SB,- smax:17.20

BC G1: 0.4519
53 powders242 loads
Barnes logo

.284 | 120gr | Barnes TTSX BT

BC G1: 0.373
53 powders242 loads
Styria Arms | AERO logo

.284 | 120gr | AERO SB.HSD 2.0 ,- smax:15.20

BC G1: 0.334
50 powders242 loads
Virtus logo

.284 | 120gr | Merlin Virtus

BC G1: 0.36
52 powders240 loads
Cutting Edge logo

.284 | 135gr | CutEdge ER Raptor

BC G1: 0.47
52 powders240 loads
Geco logo

.284 | 127gr | Geco ZERO LG

BC G1: 0.274
52 powders239 loads
Barnes logo

.284 | 120gr | Barnes TSX BT

BC G1: 0.349
52 powders238 loads
Styria Arms | AERO logo

.284 | 120gr | AERO SB.HSD 1.5 ,- smax:15.10

BC G1: 0.3537
50 powders238 loads
Cutting Edge logo

.284 | 130gr | CutEdge MTH

BC G1: 0.45
52 powders237 loads

Frequently Asked Questions

The maximum pressure for 7 x 72 R is 40,611 psi | 2,800 bar.

7 x 72 R typically uses a Large Rifle (LR) primer.

The case capacity of 7 x 72 R is approximately 54 grains of water (H₂O).
