7-6.5 PRCW Load Data & Reloading Guide

Rifle

Also known as: 7.6x53mm PRCW, 7.6 PRCW, 7.6 PRC W

About 7-6.5 PRCW

The 7-6.5 PRCW is a relatively recent development in the world of rifle calibers, designed to bridge the gap between long-range precision shooting and effective hunting capabilities. This caliber is rooted in the wildcatting tradition, where reloaders and gunsmiths experiment to optimize performance in specific applications. PRCW stands for Precision Rifle Cartridge Wildcat, indicating its origin among dedicated shooting enthusiasts who sought to create a cartridge that offered both enhanced ballistics and versatility for various applications.

Technically, the 7-6.5 PRCW is based on the parent case of the 6.5 PRC, necked up to accept a 7mm bullet. This modification results in a cartridge capable of achieving impressive ballistic performance, with improved downrange energy and trajectory superior to its 6.5mm predecessor. Typical bullet weights for the 7mm projectiles range from 140 to 180 grains, providing a balance between speed and stability. The increased case capacity allows for higher powder charges, which in turn results in higher muzzle velocities and flatter trajectories over extended ranges.

In terms of ballistic performance, the 7-6.5 PRCW is known for its excellent long-range capabilities. With optimal loads, it can achieve velocities exceeding 3000 feet per second with less elevation and wind drift compared to similar calibers. This makes it highly suitable for competitive long-range shooting, where consistent accuracy at vast distances is crucial. Additionally, its ability to maintain sufficient energy on target makes it a viable choice for hunting medium to large game, offering reliable terminal performance.

Reloaders find the 7-6.5 PRCW particularly advantageous due to its versatility in bullet selection and powder options. The wide range of bullets available in the 7mm diameter allows for tailored loads specific to target shooting or hunting needs. The commonality of the 6.5 PRC cases means that brass is relatively accessible and can be easily resized for the 7-6.5 variant. This flexibility enables reloaders to fine-tune their ammunition for personalized performance, making it a favorite among those who demand precision and adaptability in their shooting endeavors.

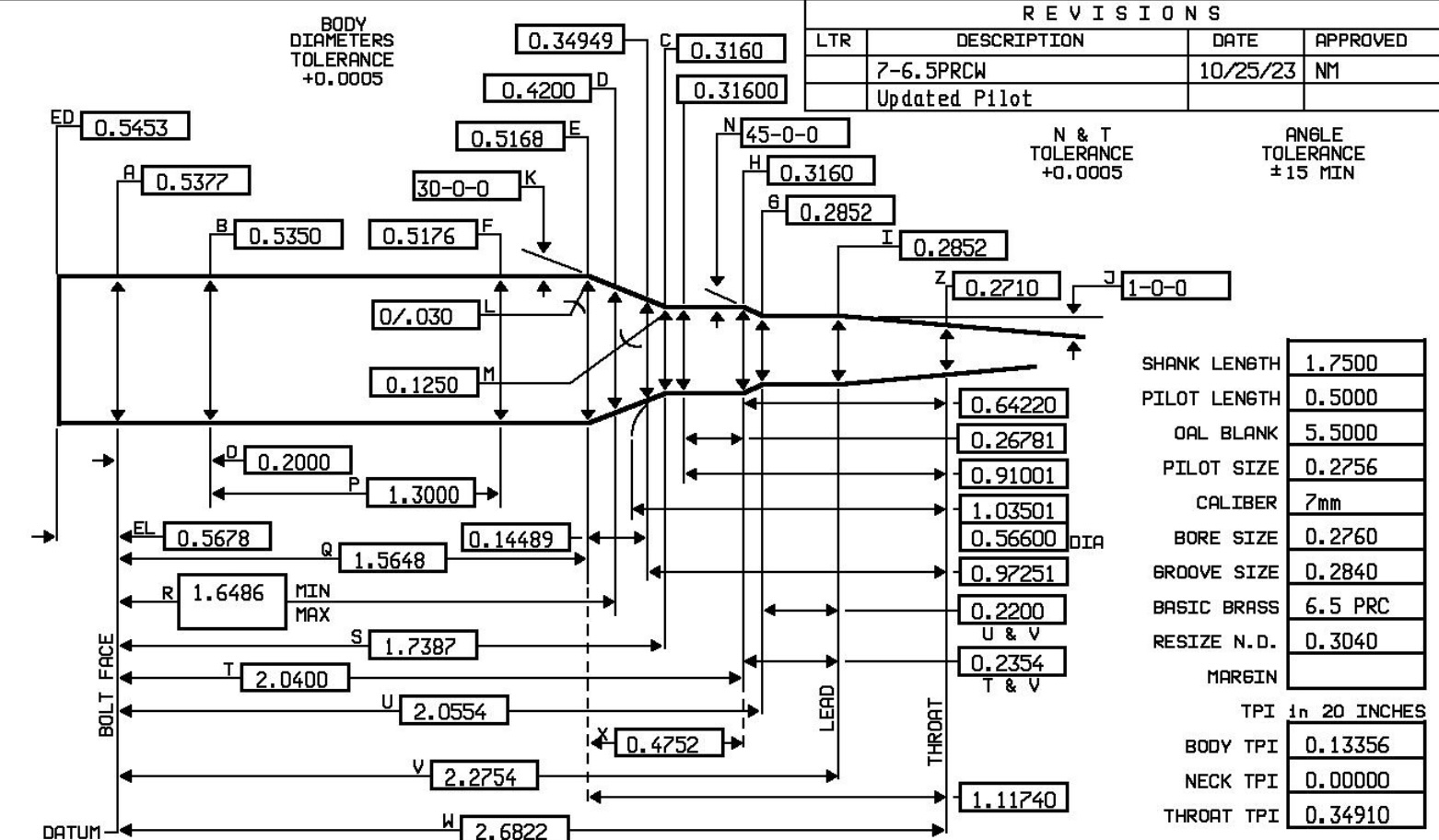

Technical Drawing

7-6.5 PRCW technical drawing and load data

Technical Specifications

Maximum Pressure:64977 PSI / 4480 bar
Case Volume:68 Grains of Water
Primer Size:Large Rifle (LR)
Safety Standard:Wildcat
Bore Area:40.39 mm²
Barrel Diameter:0.284" / 7.2 mm
L3:2.03" / 51.6 mm
L6:2.955" / 75.1 mm

Start Calculating to Develop your own Load Data for 7-6.5 PRCW

Use our professional ballistics calculator to develop safe and accurate load recipes for 7-6.5 PRCW.

Start Calculating

Brass Case Capacities

The following table shows the case capacity (Grains of Water) for brass in cartridge 7-6.5 PRCW where we have data (number of datapoints in brackets).

You need a PRO license to unlock and view all data.

ADG Brass (2)••.•

Unlock 1 more brass case capacities with PRO.

Standard Load Data — 7-6.5 PRCW

Select your desired cartridge and bullet weight below to access the corresponding load table. From there, you can choose any listed load recipe and transfer it directly into the ballistics calculator for further refinement, optimization, and precision tuning.

All
127 gr
130 gr
139 gr
140 gr
142 gr
145 gr
150 gr
152 gr
154 gr
155 gr
160 gr
170 gr
175 gr
180 gr
184 gr
Nosler logo

.284 | 140gr | Nosler Expansion Tip

BC G1: 0.489
100 powders572 loads
Hornady logo

.284 | 175gr | Hornady ELD-X

BC G1: 0.689BC G7: 0.326
102 powders592 loads
Swift logo

.284 | 175gr | Swift A-Frame

BC G1: 0.493
99 powders598 loads
Hornady logo

.284 | 180gr | Hornady ELD-Match

BC G1: 0.796BC G7: 0.401
98 powders591 loads
North Fork logo

.284 | 140gr | NorthFork Bonded Core

BC G1: 0.335
104 powders588 loads
SAKO logo

.284 | 170gr | Sako Hammerhead

BC G1: 0.407
95 powders582 loads
Alaska Bullet Works logo

.284 | 175gr | Alaska Bullet Works Kodiak PP SPBC

BC G1: 0.359
89 powders534 loads
Speer logo

.284 | 175gr | Speer Grand Slam

BC G1: 0.436
88 powders528 loads
North Fork logo

.284 | 130gr | NorthFork Bonded Core

BC G1: 0.31
100 powders598 loads
Fox Bullets logo

.284 | 145gr | Fox Classic Hunter

BC G1: 0.362
105 powders595 loads
North Fork logo

.284 | 160gr | NorthFork Bonded Core

BC G1: 0.435
110 powders588 loads
Hornady logo

.284 | 139gr | Hornady CX

BC G1: 0.429
98 powders541 loads
Berger logo

.284 | 184gr | Berger F-Open Hybrid Target

BC G1: 0.695BC G7: 0.356
90 powders531 loads
Peregrine logo

.284 | 150gr | Peregrine VLR-4

BC G1: 0.522
107 powders647 loads
Speer logo

.284 | 130gr | Speer Hot-Cor

BC G1: 0.368
106 powders625 loads
Lehigh Defense logo

.284 | 142gr | Lehigh Defense Controlled Chaos

BC G1: 0.477
104 powders620 loads
Geco logo

.284 | 127gr | Geco ZERO LG

BC G1: 0.274
102 powders618 loads
Alaska Bullet Works logo

.284 | 130gr | Alaska Bullet Works Kodiak SP SPBC

BC G1: 0.469
103 powders616 loads
Barnes logo

.284 | 152gr | Barnes LRX BT

BC G1: 0.467BC G7: 0.233
107 powders616 loads
Lapua logo

.284 | 156gr | Lapua Naturalis

BC G1: 0.28
105 powders614 loads
Woodleigh logo

.284 | 140gr | Woodleigh PP SN

BC G1: 0.436
109 powders612 loads
Swift logo

.284 | 140gr | Swift A-Frame

BC G1: 0.335
109 powders612 loads
Peregrine logo

.284 | 154gr | Peregrine VLR-5

BC G1: 0.522
110 powders611 loads
Berger logo

.284 | 150gr | Berger Classic Hybrid Hunter

BC G1: 0.505BC G7: 0.258
112 powders608 loads

Community Loads — 7-6.5 PRCW

Here are some popular loads for 7-6.5 PRCW:

You need a PRO license to unlock and view all data.

Filter:
BulletPowderBarrel (in)Charge (gr)Case Volume (GoW)OAL (in)Max. Pressure (psi)Muzzle Velocity (fps)
.284 | 104gr | GM Geschoss-Manufaktur Splinter Tip (104gr)
Reload
RS 60
22.055.068.02.8743,062 (66%)3130
.284 | 104gr | GM Geschoss-Manufaktur Splinter Tip (104gr)
Reload
RS 60
22.056.070.02.8742,772 (66%)3140
.284 | 104gr | GM Geschoss-Manufaktur Splinter Tip (104gr)
Reload
RS 60
22.060.068.02.8757,653 (89%)3422
.284 | 139gr | Barnes LRX BT (139gr)
Allian
Reloder-17
22.0••.•68.02.9855,390 (85%)2989
.284 | 139gr | Hasler ARIETE (139gr)
Reload
RS 60
33.0••.•70.02.8752,054 (80%)3196
M.284 | 139gr | Hasler ARIETE (139gr)
Reload
RS 60
20.9••.•68.02.9676,653 (118%)3186
.284 | 139gr | Hasler ARIETE (139gr)
Reload
RS 60
22.0••.•68.02.8753,751 (83%)2956
.284 | 139gr | Hasler ARIETE (139gr)
Reload
RS 60
22.0••.•70.02.8752,054 (80%)2946
.284 | 139gr | Hasler ARIETE (139gr)
Reload
RS 60
22.0••.•70.02.8752,054 (80%)2943
.284 | 139gr | Hasler ARIETE (139gr)
Reload
RS 60
22.0••.•70.02.8751,169 (79%)2930
.284 | 139gr | Hasler ARIETE (139gr)
Reload
RS 60
20.9••.•70.02.9654,810 (84%)2927
.284 | 139gr | Hasler ARIETE (139gr)
Reload
RS 60
22.0••.•70.02.8750,256 (77%)2917
.284 | 139gr | Hasler ARIETE (139gr)
Reload
RS 60
20.9••.•70.02.9648,240 (74%)2848
.284 | 139gr | Hasler ARIETE (139gr)
Reload
RS 60
20.9••.•70.02.9642,946 (66%)2746
M.284 | 145gr | Barnes LRX BT (145gr)
Allian
Reloder-17
22.0••.•68.02.9862,294 (96%)3022
.284 | 152gr | Hasler ARIETE (152gr)
Reload
RS 60
33.0••.•70.02.8757,305 (88%)3127
M.284 | 160gr Hornady CX (160gr)
Reload
RS 60
20.9••.•70.02.9659,930 (92%)2792
M.284 | 160gr | Barnes LRX BT (160gr)
Reload
RS 60
33.0••.•70.02.8767,414 (104%)3140
M.284 | 160gr | Barnes LRX BT (160gr)
Reload
RS 60
20.9••.•68.02.9667,167 (103%)2854
M.284 | 175gr | Hornady ELD-X (175gr)
Hodgdo
H4350
20.0••.•68.02.9663,904 (98%)2651
M.284 | 175gr | Hornady ELD-X (175gr)
Hodgdo
4350
20.0••.•68.02.9663,904 (98%)2651
M.284 | 175gr | Hornady ELD-X (175gr)
Hodgdo
H4350
20.0••.•68.02.9660,329 (93%)2605
M.284 | 175gr | Hornady ELD-X (175gr)
Hodgdo
4350
20.0••.•68.02.9660,321 (93%)2605
M.284 | 175gr | Hornady ELD-X (175gr)
Hodgdo
H4350
20.0••.•68.02.9658,595 (90%)2582

Frequently Asked Questions

The maximum pressure for 7-6.5 PRCW is 64,977 psi | 4,480 bar.

7-6.5 PRCW typically uses a Large Rifle (LR) primer.

The case capacity of 7-6.5 PRCW is approximately 68 grains of water (H₂O).
