.323 | 200gr | Swift A-Frame
by Swift · See details on brand website

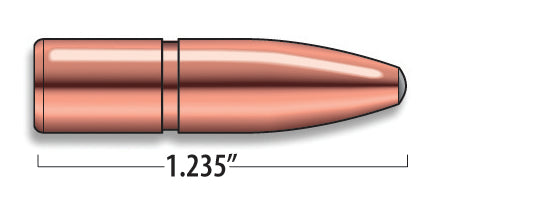

The Swift A-Frame is a legendary bonded and partitioned hunting bullet designed for the deepest penetration on the world's largest and most dangerous game. Its unique construction features a front lead core bonded to a heavy copper jacket, backed by an internal partition and rear lead core for maximum weight retention exceeding 95%. This dual-core design ensures controlled expansion in the front while the rear drives through for maximum penetration. The A-Frame is the bullet of choice for Cape buffalo, elephant, and large bears where failure is not an option. Its semi-spitzer profile feeds reliably in all action types.
Specifications
Weight
200 gr (12.96 g)
Diameter
0.323″ (8.20 mm)
Sectional Density
0.274
BC G1
0.357
Type
A-Frame
Min. Twist
1:15.0
Related Load Recipes
Load recipes using .323 | 200gr | A-Frame are available in the following cartridges:
Similar Bullets
Same-caliber projectiles within ±0.003", ±5gr, ±7.5% length and matching lead content from other brands.
.323 | 195gr | InterLock SP
Hornady · 195gr · BC 0.41
.323 | 200gr | Partition
Nosler · 200gr · BC 0.426
.323 | 196gr | SPCE
Sellier & Bellot · 196gr · BC 0.281
.323 | 200gr | Hot-Cor
Speer · 200gr · BC 0.411
.323 | 196gr | PlastSpitz
Norma · 196gr · BC 0.35
.323 | 200gr | HPBT Matchking
Sierra · 200gr · BC 0.52
.322 | 196gr | SP
Prvi Partizan · 196gr · BC 0.35
.323 | 198gr | TIG
Brenneke · 198gr · BC 0.35
.323 | 196gr | PLUS
Geco · 196gr · BC 0.346
.323 | 196gr | FMJ-BT
Sellier & Bellot · 196gr · BC 0.557
.323 | 198gr | ID Classic
RWS · 198gr · BC 0.35
.323 | 196gr | VULKAN
Norma · 196gr · BC 0.34
Community Load Data for .323 | 200gr | A-Frame
Loads for .323 | 200gr | A-Frame from our community:
1 loads
| cartridge | Powder | Barrel (in) | Charge (gr) | OAL (in) | Max. Pressure (psi) | Muzzle Velocity (fps) |
|---|---|---|---|---|---|---|
| 8 x 68 S | Alliant Powder Reloder-17 | 26.0 | 69.9 | 3.425 | 61160 (96%) | 2982 |
