8.5 x 68 Fanzoj Load Data & Reloading Guide

Rifle

Also known as: 8.5x68 Fanzoj, 8.5×68mm Fanzoj, 8.5mm Fanzoj

About 8.5 x 68 Fanzoj

The 8.5 x 68 Fanzoj is a relatively recent development in the world of high-performance rifle ammunition. Developed by the Johann Fanzoj gunmaking company in Austria, this caliber is designed to bridge the gap between traditional European and American hunting cartridges. The development of the 8.5 x 68 Fanzoj reflects a push for innovation, combining modern ballistics technology with classical cartridge design principles. This caliber is built on the long-standing tradition of precision and excellence in gunmaking, reflecting Fanzoj's commitment to quality and performance.

Technically, the 8.5 x 68 Fanzoj utilizes a case based on the venerable 8 x 68 S, a well-regarded cartridge in Europe known for its excellent ballistic performance. The 8.5 x 68 achieves a balance between kinetic energy and manageable recoil, providing hunters and marksmen with impressive downrange capability. The case is designed to handle higher pressures, optimizing the velocity and energy delivered by the larger bullet diameter. Typical bullet weights range from 180 to 220 grains, offering versatility for various shooting applications.

Ballistically, the 8.5 x 68 Fanzoj provides flat trajectories and significant energy retention at extended ranges. It is particularly effective for medium to large game hunting, where its stopping power and accuracy are appreciated. The cartridge's design facilitates high velocity and energy transfer, making it an excellent choice for hunting scenarios that require reliable terminal performance at varying distances.

For amateur and professional reloaders, the 8.5 x 68 Fanzoj offers a range of advantages. Its case capacity allows for flexibility in powder selection, enabling tailored loads that optimize velocity and accuracy according to specific shooting needs. The relatively new nature of the caliber means that reloaders can experiment to develop innovative loads that enhance performance further. The combination of precision engineering and modern ballistic characteristics makes the 8.5 x 68 Fanzoj a valuable addition to any reloader's portfolio, promising reliability and impact in both practical hunting and precision shooting contexts.

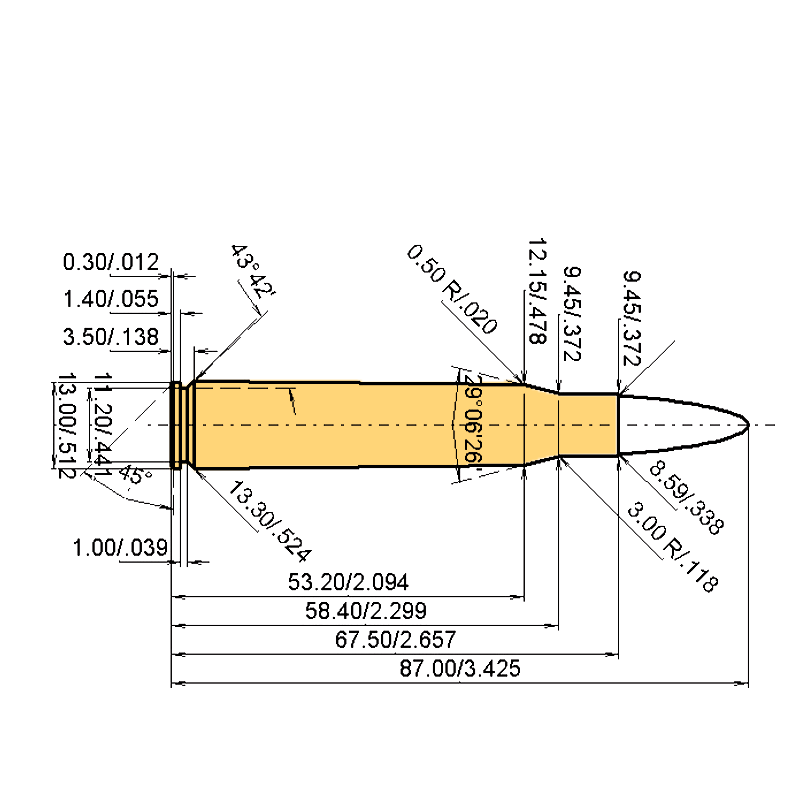

Technical Drawing

8.5 x 68 Fanzoj cartridge dimensions, C.I.P.L1 = 53.2 mm, L2 = 58.4 mm, L3 = 67.5 mm, L6 = 87 mmL1 = 53.20 mmL2 = 58.40 mmL3 = 67.50 mmL6 = 87.00 mm29.1°

Based on C.I.P., the max. allowed case length is 2.657 in / 67.50 mm, the max. cartridge length is 3.425 in / 87.00 mm, and the max. allowed pressure is 63,817 PSI / 4,400 bar.

Technical Specifications

Maximum Pressure:63817 PSI / 4400 bar
Case Volume:92 Grains of Water
Primer Size:Large Rifle Magnum (LRM)
Safety Standard:C.I.P. (Datasheet)
Bore Area:56.95 mm²
Barrel Diameter:0.338" / 8.6 mm
L1:2.094" / 53.20 mm
L2:2.299" / 58.40 mm
L3:2.657" / 67.50 mm
L6:3.425" / 87.00 mm

Start Calculating to Develop your own Load Data for 8.5 x 68 Fanzoj

Use our professional ballistics calculator to develop safe and accurate load recipes for 8.5 x 68 Fanzoj.

Start Calculating

Standard Load Data — 8.5 x 68 Fanzoj

Select your desired cartridge and bullet weight below to access the corresponding load table. From there, you can choose any listed load recipe and transfer it directly into the ballistics calculator for further refinement, optimization, and precision tuning.

All
130 gr
138 gr
165 gr
175 gr
190 gr
191 gr
200 gr
210 gr
225 gr
230 gr
250 gr

Frequently Asked Questions

The maximum pressure for 8.5 x 68 Fanzoj is 63,817 psi | 4,400 bar.

8.5 x 68 Fanzoj typically uses a Large Rifle Magnum (LRM) primer.

The case capacity of 8.5 x 68 Fanzoj is approximately 92 grains of water (H₂O).
