.264 | 127gr | Barnes LRX BT bullet load data

.264 | 127gr | Barnes LRX BT

Barnes logoby Barnes · See details on brand website

LRX BT
Lead-free
SKU: 30228
Twist: 1:8.5

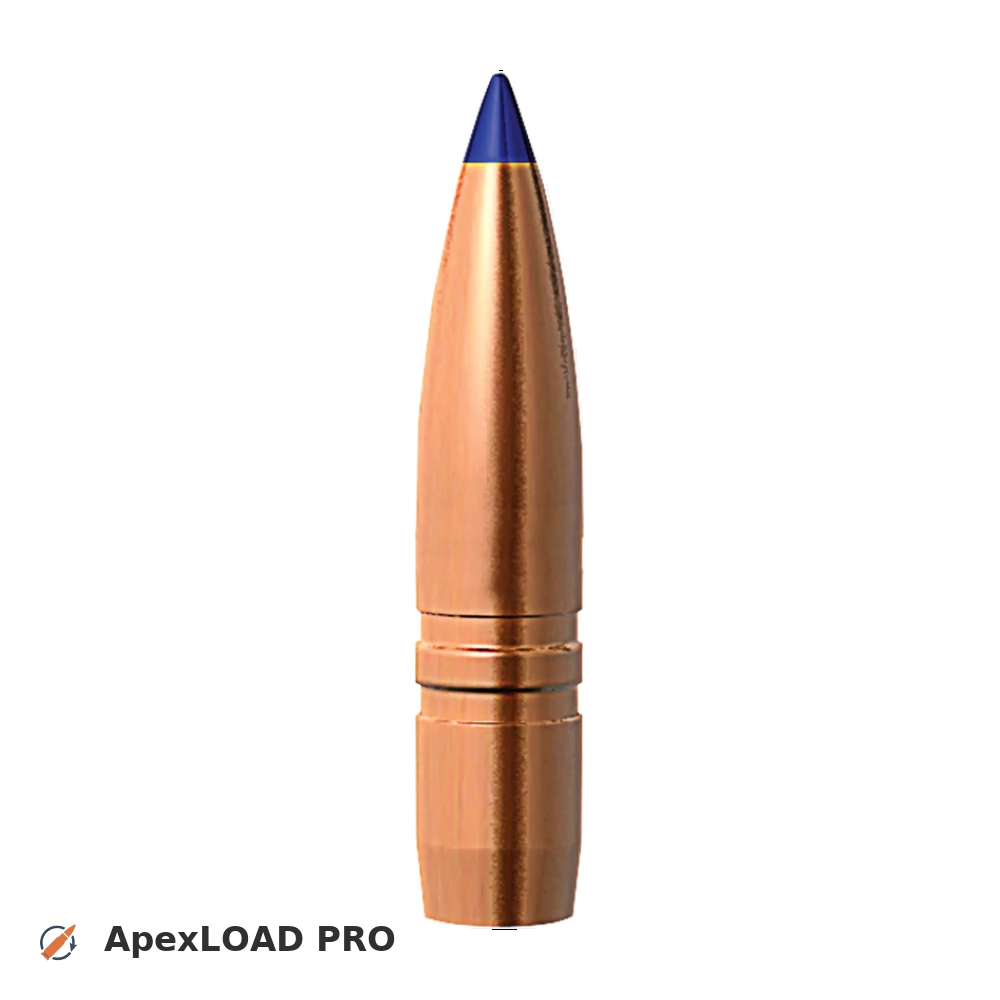

The Barnes LRX BT bullet is designed for handloaders and hunters seeking superior performance in terminal ballistics. Constructed with a solid copper core and a polymer tip, the LRX BT promotes rapid expansion and deep penetration, making it ideal for a variety of hunting scenarios. It is suitable for use on medium to large game, such as deer, elk, and bear, and performs exceptionally well in various calibers. The advantages of the LRX BT include high weight retention, deep penetration, and controlled expansion, ensuring a lethal impact while minimizing meat damage. Its streamlined design enhances ballistic efficiency, providing hunters with increased accuracy and distance.

Specifications

Weight

127 gr (8.23 g)

Diameter

0.264″ (6.71 mm)

Sectional Density

0.260

BC G1

0.468

BC G7

0.229

Type

LRX BT

Min. Twist

1:8.5

Related Load Recipes

Load recipes using .264 | 127gr | LRX BT are available in the following cartridges:

Similar Bullets

Same-caliber projectiles within ±0.003", ±5gr and matching lead content from other brands.

Community Load Data for .264 | 127gr | LRX BT

Loads for .264 | 127gr | LRX BT from our community:

71 loads

cartridgePowderBarrel (in)Charge (gr)OAL (in)Max. Pressure (psi)Muzzle Velocity (fps)
6.5 CreedmoorVihtavuori N55523.640.02.82535057 (56%)2530
6.5 CreedmoorReload Swiss ReloadSwiss RS 6018.041.52.75054453 (86%)2707
6.5 CreedmoorReload Swiss ReloadSwiss RS 6024.041.52.75054453 (86%)2884
6.5 CreedmoorVihtavuori Vihtavuori N16020.0••.•2.78360462 (96%)2762
6.5 CreedmoorVihtavuori Vihtavuori N16020.0••.•2.78351488 (82%)2638
6.5 x 68Vihtavuori N55023.6••.•3.35462365 (98%)3091
6.5 x 68Vihtavuori Vihtavuori N56023.6••.•3.35462559 (98%)3212
6.5 x 65 RReload Swiss RS 6221.7••.•3.34053953 (98%)2861
6.5 PRCVihtavuori N56022.0••.•2.90062594 (96%)3100
6.5 PRCHodgdon H100024.0••.•2.95546337 (71%)2854
6.5 PRCVihtavuori N56024.0••.•2.88556502 (87%)3068
.260 Ackley ImprovedAlliant Powder Reloder-1718.0••.•2.75051977 (83%)2677
.260 Ackley ImprovedHodgdon H435018.0••.•2.75059862 (96%)2703
6.5 PRCVihtavuori N55524.0••.•2.95556943 (88%)3018
6.5 PRCVihtavuori N56524.0••.•2.95549742 (77%)2940
6.5 PRCVihtavuori N56024.0••.•2.95549638 (76%)2953
6.5 PRCVihtavuori N55524.0••.•2.88561341 (94%)3077
6.5 PRCVihtavuori N56024.0••.•2.88558569 (90%)3104
6.5 PRCVihtavuori N56024.0••.•2.87559249 (91%)3107
6.5 PRCVihtavuori N56024.0••.•2.88561870 (95%)3153
6.5 PRCRamshot Hunter24.0••.•2.87559767 (92%)3058
6.5 PRCVihtavuori N55020.0••.•2.95561956 (95%)2913
6.5 PRCVihtavuori N55020.0••.•2.95548025 (74%)2697
6.5 x 55 SwedishVihtavuori N55522.4••.•3.12745220 (82%)2720
6.5 x 55 SwedishVihtavuori N55522.4••.•3.09742709 (77%)2671
Page 1 of 3
