Load data for 7.5 x 55 Swiss + 200gr Swift A-Frame
852 suitable loads across 149 powder(s) for cartridge 7.5 x 55 Swiss with 200gr Swift A-Frame bullet.
Based on C.I.P., the max. allowed case length is 2.189 in / 55.60 mm, the max. cartridge length is 3.059 in / 77.70 mm, and the max. allowed pressure is 55,114 PSI / 3,800 bar.
Based on C.I.P., the max. allowed case length is 2.189 in / 55.60 mm, the max. cartridge length is 3.059 in / 77.70 mm, and the max. allowed pressure is 55,114 PSI / 3,800 bar.
Load Specifications
ImperialMetric

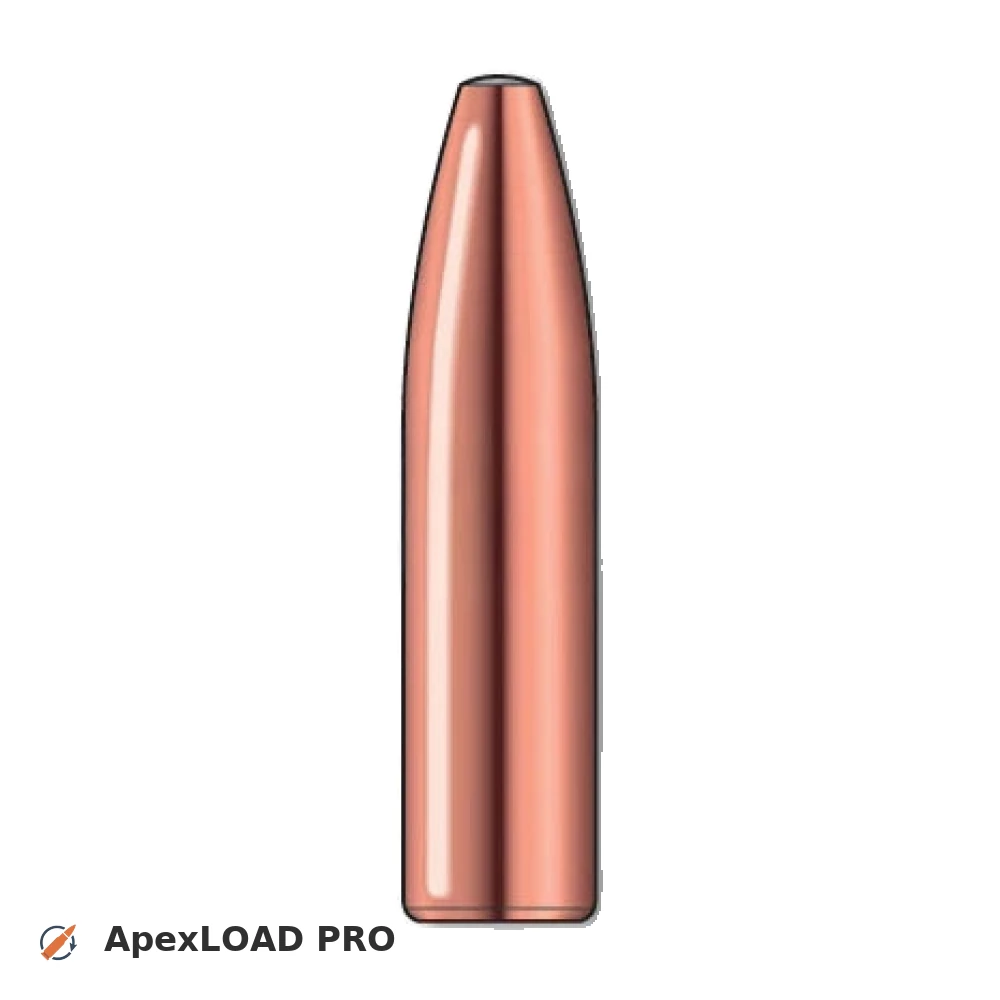

Bullet:.308 | 200gr | A-Frame
Cartridge:7.5 x 55 Swiss load data
Case Length (L3):2.188" | 55.6 mm
Cartridge Length (COL/L6):•••
Seated Depth:0.594" | 15.1 mm
Case Capacity:65 gow | 4.21 cm³
Primer Size:Large Rifle (LR)
Max. Pressure (C.I.P.):55,114 psi | 3,800 bar
Barrel Length:23.3" | 592 mm
Min. Twist Rate:1:13.0
Get PRO license to unlock all data and calculators
