.450/400 N.E. 3'' Load Data & Reloading Guide

Rifle

About .450/400 N.E. 3''

The .450/400 Nitro Express 3" is a classic British big-game rifle cartridge developed in the early 20th century. Originally designed for use in double rifles, it gained popularity among hunters in Africa and India due to its reliable performance on dangerous game. Balancing power and manageable recoil, it became a notable choice before being overshadowed by larger calibers like the .470 Nitro Express.

This cartridge features a rimmed, bottlenecked case measuring 3 inches in length, accommodating a bullet diameter of .411 inches. Typically, bullet weights range from 300 to 400 grains, where the 400-grain soft point or solid bullet is most common. Propelled by cordite-based powder in its traditional loadings, modern reloaders have the advantage of using contemporary smokeless powders and more efficient bullet designs, enhancing performance while maintaining traditional ballistics.

The .450/400 N.E. 3" achieves muzzle velocities around 2100 to 2200 feet per second, delivering substantial energy suitable for thick-skinned and dangerous game. Its moderate pressure and balanced load enable effective performance in field conditions without punishing recoil, making it a well-rounded option for hunters seeking power without excessive discomfort.

For ammunition reloaders, the .450/400 N.E. 3" offers advantages such as relatively straightforward reloading processes due to its rimmed case design, which eases extraction and ejection. Although brass cases and bullets may require sourcing from specialized suppliers, careful selection of components and adherence to pressure guidelines ensures safe, precise loads that honor the caliber's heritage while exploiting modern ballistic advancements.

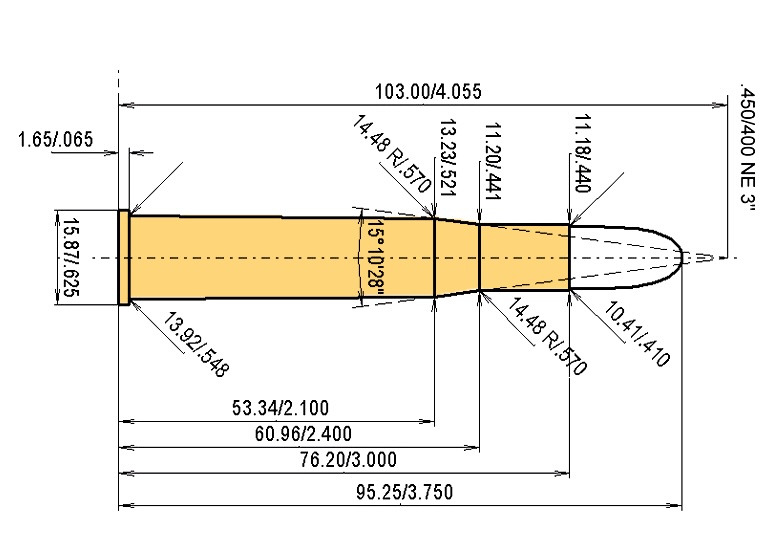

Technical Drawing

.450/400 N.E. 3'' technical drawing and load data

Technical Specifications

Maximum Pressure:40611 PSI / 2800 bar
Case Volume:115 Grains of Water
Primer Size:Large Rifle Magnum (LRM)
Safety Standard:C.I.P.
Bore Area:83.84 mm²
Barrel Diameter:0.41" / 10.4 mm
L3:2.99" / 75.9 mm
L6:3.75" / 95.3 mm

Start Calculating to Develop your own Load Data for .450/400 N.E. 3''

Use our professional ballistics calculator to develop safe and accurate load recipes for .450/400 N.E. 3''.

Start Calculating

Standard Load Data — .450/400 N.E. 3''

Select your desired cartridge and bullet weight below to access the corresponding load table. From there, you can choose any listed load recipe and transfer it directly into the ballistics calculator for further refinement, optimization, and precision tuning.

All
198 gr
200 gr
201 gr
208 gr
231 gr
235 gr
260 gr
265 gr
285 gr
300 gr
315 gr
325 gr
350 gr
375 gr

Frequently Asked Questions

The maximum pressure for .450/400 N.E. 3'' is 40,611 psi | 2,800 bar.

.450/400 N.E. 3'' typically uses a Large Rifle Magnum (LRM) primer.

The case capacity of .450/400 N.E. 3'' is approximately 115 grains of water (H₂O).
