.404 Riml. N.E. Load Data & Reloading Guide

Rifle

Also known as: .404 Nitro Express, .404 Rimless Nitro Express, .404 N.E.

About .404 Riml. N.E.

The .404 Jeffery, also known as the .404 Rimless Nitro Express or 10.75x73mm, was introduced around 1905 by W.J. Jeffery & Co., a British gunmaker. Developed for big game hunting in Africa and India, it quickly gained a reputation for reliability and effectiveness against large, dangerous animals such as elephants, rhinoceroses, and buffalos. Its design catered to the increasing demand for rimless cartridges that allowed for smoother feeding in bolt-action rifles.

Technically, the .404 Jeffery features a rimless, bottlenecked case that measures 73mm in length. It was originally loaded with cordite, a smokeless powder, to produce high velocities for its time. Standard bullet diameters are typically around .423 inches, and historically, factory cartridges were loaded with bullets weighing between 300 to 400 grains. Modern loads often produce velocities ranging from 2,150 to 2,350 feet per second, allowing for consistent penetration and controlled expansion upon impact.

Ballistically, the .404 Jeffery offers a balance between stopping power and manageable recoil, which is crucial for follow-up shots during tense and dangerous encounters. This balance makes it a favorite among professional hunters and guides across Africa. Reloaders appreciate the caliber's ability to accommodate a variety of projectile designs, including soft point, solid, and monolithic bullets, each catering to different hunting scenarios. Furthermore, modern powders allow reloaders to enhance the performance within safe pressure limits.

For ammunition reloaders, the .404 Jeffery presents several advantages. Brass cases are manufactured by several companies, making them relatively accessible. This caliber also allows for significant flexibility in tailoring loads to specific hunting requirements or personal preferences. The availability of premium bullets enhances its utility for reloading, offering options to optimize expansion or penetration depending on the game pursued. Reloading the .404 Jeffery provides the opportunity to achieve optimal velocity and energy, ensuring it remains a reliable choice for dangerous game hunting.

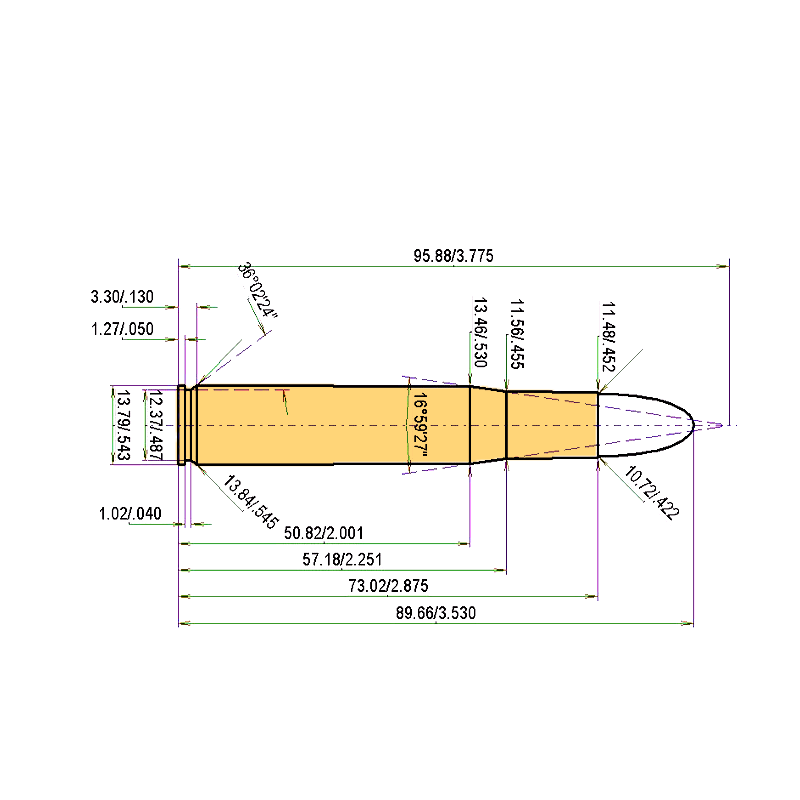

Technical Drawing

.404 Riml. N.E. technical drawing and load data

Technical Specifications

Maximum Pressure:52939 PSI / 3650 bar
Case Volume:113.3 Grains of Water
Primer Size:Large Rifle Magnum (LRM)
Safety Standard:C.I.P.
Bore Area:88.6 mm²
Barrel Diameter:0.423" / 10.7 mm
L3:2.84" / 72.1 mm
L6:3.53" / 89.7 mm

Start Calculating to Develop your own Load Data for .404 Riml. N.E.

Use our professional ballistics calculator to develop safe and accurate load recipes for .404 Riml. N.E..

Start Calculating

Brass Case Capacities

The following table shows the case capacity (Grains of Water) for brass in cartridge .404 Riml. N.E. where we have data (number of datapoints in brackets).

You need a PRO license to unlock and view all data.

Norma (1)••.•

Unlock 1 more brass case capacities with PRO.

Standard Load Data — .404 Riml. N.E.

Select your desired cartridge and bullet weight below to access the corresponding load table. From there, you can choose any listed load recipe and transfer it directly into the ballistics calculator for further refinement, optimization, and precision tuning.

All
220 gr
223 gr
240 gr
280 gr
300 gr
320 gr
325 gr
350 gr
380 gr
400 gr
450 gr
Reichenberg logo

.422 | 300gr | Reichenberg HDB Universal

BC G1: 0.172
81 powders520 loads
Reichenberg logo

.422 | 300gr | Reichenberg Solid

BC G1: 0.153
84 powders500 loads
Reichenberg logo

.423 | 280gr | Reichenberg HDB Universal

BC G1: 0.153
79 powders495 loads
Cutting Edge logo

.423 | 350gr | CutEdge DGBR

BC G1: 0.17
91 powders495 loads
Cutting Edge logo

.423 | 325gr | CutEdge DGBR-HP

BC G1: 0.16
81 powders495 loads
Frontier Bullets logo

.421 | 350gr | Frontier PH HPFB

BC G1: 0.35
84 powders487 loads
North Fork logo

.423 | 380gr | NorthFork Bonded Core

BC G1: 0.335
89 powders485 loads
Barnes logo

.423 | 350gr | Barnes Solid RN

BC G1: 0.341
90 powders483 loads
Swift logo

.423 | 400gr | Swift A-Frame

BC G1: 0.375
90 powders471 loads
North Fork logo

.423 | 400gr | North Fork Semi Spitz

BC G1: 0.378
90 powders469 loads
Impala Bullets logo

.423 | 280gr | Impala LW CFN

BC G1: 0.193
74 powders468 loads
Rhino Bullets logo

.421 | 400gr | Rhino Solid Shank

BC G1: 0.299
85 powders463 loads
Styria Arms | AERO logo

.422 | 240gr | AERO SB,- smax:12.93

BC G1: 0.1768
73 powders462 loads
Woodleigh logo

.422 | 400gr | Woodleigh RN SN

BC G1: 0.335
84 powders459 loads
Barnes logo

.423 | 400gr | Barnes Banded Solid

BC G1: 0.236
88 powders458 loads
Impala Bullets logo

.423 | 320gr | Impala RNFP KO

87 powders451 loads
Styria Arms | AERO logo

.423 | 240gr | AERO SB,- smax:12.80

BC G1: 0.1768
74 powders439 loads
Reichenberg logo

.422 | 223gr | Reichenberg HDB Universal

BC G1: 0.155
72 powders430 loads
A-Square logo

.423 | 400gr | A-Square LionLoad

BC G1: 0.311
80 powders422 loads
Woodleigh logo

.422 | 450gr | Woodleigh RN SN

BC G1: 0.36
82 powders413 loads
A-Square logo

.423 | 400gr | A-Square DeadTough

BC G1: 0.311
79 powders410 loads
A-Square logo

.423 | 400gr | A-Square MONO RN

BC G1: 0.311
79 powders410 loads
Barnes logo

.423 | 400gr | Barnes X S

BC G1: 0.527
80 powders409 loads
Styria Arms | AERO logo

.422 | 220gr | AERO SB,- smax:13.10

BC G1: 0.1768
64 powders394 loads

Frequently Asked Questions

The maximum pressure for .404 Riml. N.E. is 52,939 psi | 3,650 bar.

.404 Riml. N.E. typically uses a Large Rifle Magnum (LRM) primer.

The case capacity of .404 Riml. N.E. is approximately 113.3 grains of water (H₂O).
