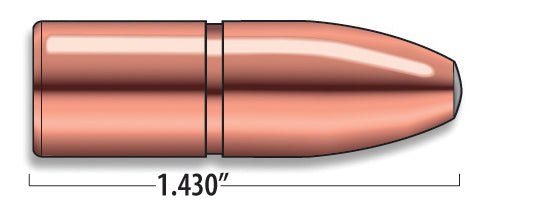

.458 | 500gr | Swift A-Frame
by Swift
The Swift A-Frame is a legendary bonded and partitioned hunting bullet designed for the deepest penetration on the world's largest and most dangerous game. Its unique construction features a front lead core bonded to a heavy copper jacket, backed by an internal partition and rear lead core for maximum weight retention exceeding 95%. This dual-core design ensures controlled expansion in the front while the rear drives through for maximum penetration. The A-Frame is the bullet of choice for Cape buffalo, elephant, and large bears where failure is not an option. Its semi-spitzer profile feeds reliably in all action types.
Specifications
Weight
500 gr (32.40 g)
Diameter
0.458″ (11.63 mm)
Sectional Density
0.341
BC G1
0.361
Type
A-Frame
Min. Twist
1:6.0
Related Load Recipes
Load recipes using .458 | 500gr | A-Frame are available in the following cartridges:
Similar Bullets
Same-caliber projectiles within ±0.003", ±5gr and matching lead content from other brands.
.459 | 500gr | RN LUBED
ACME · 500gr
.458 | 500gr | MONO RN
A-Square · 500gr · BC 0.342
.459 | 500gr | RNFP Gas Check
Rim Rock · 500gr
.458 | 500gr | FMC RN
Remington · 500gr · BC 0.345
.457 | 500gr | flat nose cast
LEE · 500gr
.457 | 500gr | Mold 457-500-F
LEE · 500gr · BC 0.278
.459 | 500gr | RN COATED BLACK
ACME · 500gr
.458 | 500gr | TBSS
Speer · 500gr · BC 0.328
.458 | 500gr | Solid
Nosler · 500gr · BC 0.246
.458 | 500gr | Percussion Point
North Fork · 500gr · BC 0.43
.459 | 500gr | RNFP Cowboy
Rim Rock · 500gr
.458 | 500gr | Frontier PH HPFB
Frontier Bullets · 500gr · BC 0.419
Community Load Data for .458 | 500gr | A-Frame
Loads for .458 | 500gr | A-Frame from our community:
1 loads
| cartridge | Powder | Barrel (in) | Charge (gr) | OAL (in) | Max. Pressure (psi) | Muzzle Velocity (fps) |
|---|---|---|---|---|---|---|
| .450 N.E. 3 1/4'' | Vihtavuori N135 | 26.0 | 76.0 | 3.950 | 44034 (100%) | 2133 |
